Description

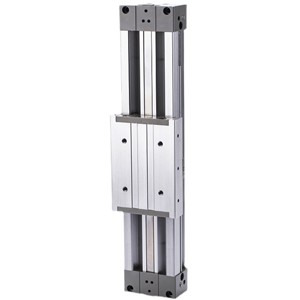

SHINYEE pneumatic cylinder MY1M Slide Mechanical Jointed Rodless guide liner Rail cylinder SMC type
| Bore size | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
| Fluid | Air | |||||||
| Action | Double acting | |||||||
| Operating pressure range | 0.2 to 0.8 MPa | 0.15 to 0.8 MPa | ||||||
| Proof pressure | 1.2 MPa | |||||||
| Ambient and fluid temperature | 5 to 60°C | |||||||
| Cushion | Air cushion | |||||||
| Lubrication | Non lube | |||||||

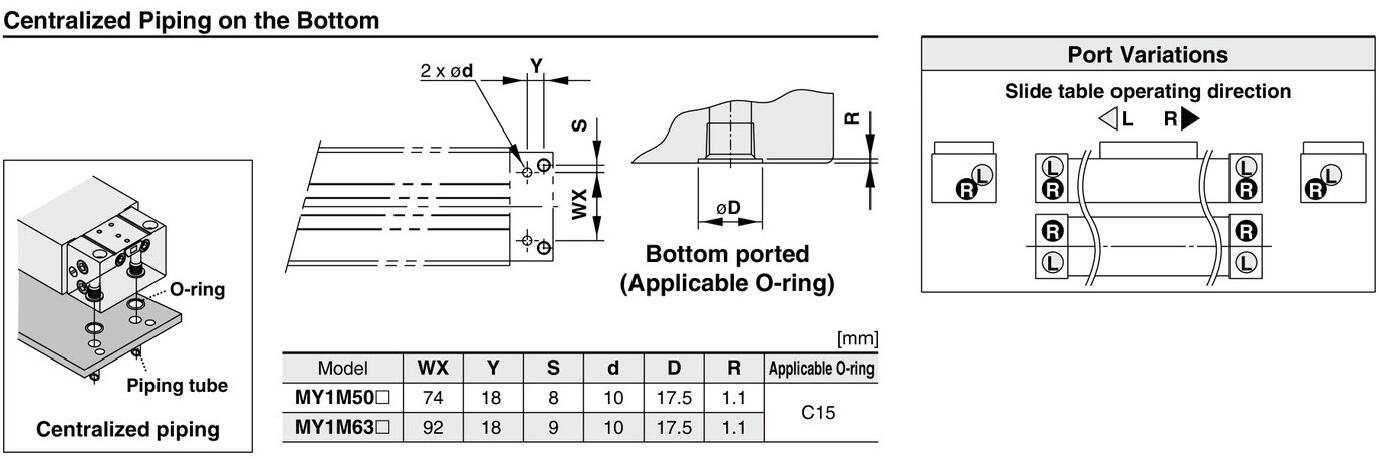

| Piping port size | Front/side port | M5×0.8 | /1/8 | /1/4 | /3/8 | |||
| Bottom port | ∅4 | ∅6 | ∅10 | |||||
